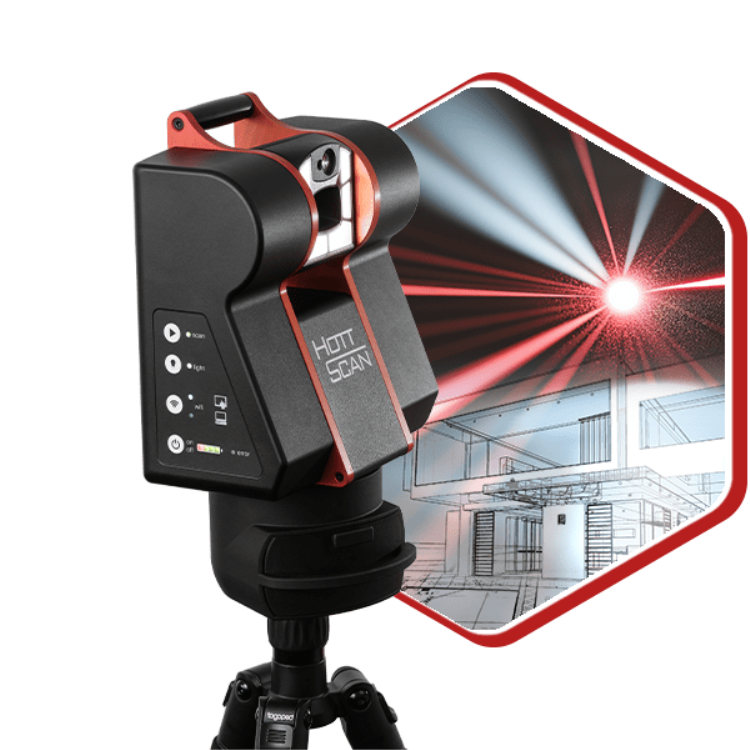

HottScan 3D- roomscanner
3D room survey in 2 minutes
A complete solution of superlatives: quick and easy ´on-site´ building surveys including software. Survey rooms with precise floorplans and export the aquired CAD geometry to CAD software.
The HottScan 3D- roomscanner broadens the Hottgenroth group´s portfolio by another ground-breaking new approach to 3D room modelling. The HottScan room scanner aquires any desired geometry with precise laser measurements.
The high-end capturing technology requires only a few measurements to generate a complete 3D room with all details after the data export via USB stick or WIFI.The next to the 3D room the quantity analytics for planning and structural arrangements is generated with one click.
The high resolution 3D image is available for expert opinion and technical assessments.The data export is available in all common formats. The handling is so easy that no special know-how is needed.
Room survey
The laserscanner aquire rooms with precise laser measurements with one click.
In two minutes a complex 360° panorama image is created with all details. No dimension or non accessable sector can be missed.
The included modeling software enhance the aquisition. Even intersections covered by components or interior will be captured. No measurement is unaccessable.
HottScan-App
The direct connection to HottScan 3D room scannerCheck your surveys on-site with the preview panorama.
The 360° panoramas can be moved with swiped gestures or with the motion sensors of your device. The app is available in German and English.
Technical Data
|
Featured ange-range |
Measurement range |
347° horizontal, 180° vertical |
|
|
Relative accuracy: |
0,01° |
|
Technical specs laser distance measurer |
Type |
Co-axial, Visible red laser
< 1 mW, IEC 60825-1:2003-10 |
|
|
Operational lifetime |
> 50.000 hours |
|
|
Measurement range |
0.05 - 80 meter |
|
|
Laser Class |
2 |
|
|
Laser type |
650 nm; < ImW |
|
|
Ø laser- dot (on distance) |
5m: 4mm
10m: 8mm
50m: 28x14mm
Accuracy: +/- 1mm, depending on distance, surface & light conditions |
|
Camera resolution |
Field of view |
(5 Megapixels) 2592x 1944 (h x v) |
|
|
Flare angle |
appr. 54° x 41° |
|
Controls |
User interface |
Userinterface with soft-touch buttons and LED illumination/ battery capacity/ status display and error indicator, remote control feature |
|
Data transfer |
USB |
32 GB USB flash drive |
|
|
WiFi |
802.11 b/g/n, 2,4 GHz wireless LAN |
|
|
Range |
50 m depending on environmental conditions |
|
Power supply |
Mains adapter |
At discharge of 16.8 V - primary voltage : 100V- 240V, 19.5 VA, 50/610 Hz |
|
|
Battery |
Operation between 11.2- 16.8V |
|
|
Running time |
Up to 11.5 hours depending on use of LED lighting; typical running time is approx. 8 hours |
|
Environmental conditions |
Operating ambient temperature operation and battery Charging |
+0° bis +40° C |
|
|
Storage |
-20° bis +50° C |
|
|
Dust and moisture |
IP 40 |
Special features
|
-
Hot Swap: The battery can be exchanged, within ± 30 seconds, during operation
-
The integrated LED lighting offers support in dark conditions
-
Portability: The low weight (approx. 4.7 kg) in conjunction with a foldable tripod makes the HottScan HS-1 a handy companion for on-site assessments and is easy to service and maintain.
|
